Hermetic Sealing Fiber Array

Hermetic Sealing FA
  • Hermetic Sealing FA

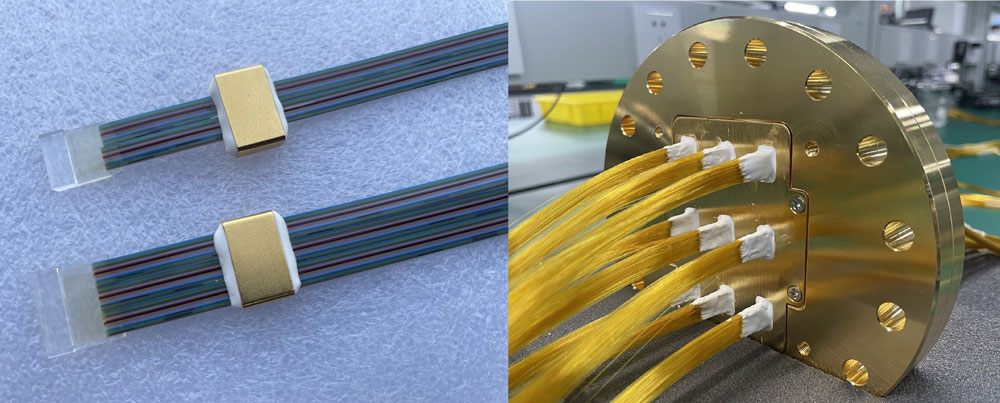

MEISU's hermetic sealing fiber array is realized by gold-coating the fiber cladding before inserting them into a metal (KOVAR) tube. Gap between fibers and tube is fully filled with sodering tin. The metal (KOVAR) tube of MEISU's hermetic sealing fiber is gold-coated as well to prevent it from oxidization. Such linear fiber array is commonly used in optical devices and modules that require air-tight packaging. The gold-coated Kover tube is easy to be fixed in optical devices using soldering tin and achieve air-tightness.

MFD matched Fiber Array Feature

Hermetic Sealing FA Features

Fiber count: 1, 2, 4, 8, 16

Core Pitch: 127μm, 250μm

Pitch Tolerance:<0.5μm

Fiber Type: PM, SM, MM fiber

Gold-coated KOVAR case

High reliability

How It Works

To guarantee the stability and reliability of the optical devices, hermetic sealing fiber array uses a sealable ribbon fiber. This kind of ribbon fiber can pass through a gold-coated KOVAR casing assembly and constitute a sealing system. And the gap between the ribbon fiber and the metal casing assembly is filled with solder and sealed, thus the fiber array can withstand the secondary welding temperature.
