A fiber bundle is a precision optical assembly that combines multiple optical fibers into a controlled arrangement to transfer light efficiently between different optical systems. Compared with individual fibers, a customized fiber optic cable bundle provides higher integration density, flexible channel configurations, and improved optical coupling performance.
MEISU develops advanced 2D fiber optic bundle solutions by precisely arranging single fibers into rectangular or circular patterns with customized core pitch control. Through high-precision alignment technology and proprietary fiber processing techniques, MEISU enables compact optical interconnection solutions for silicon photonics, imaging systems, optical communication, sensing, and laser applications.
From a single fiber to a high-density 2D fiber array, customized fiber bundle technology helps engineers overcome challenges in optical alignment, space limitations, and multi-channel signal transmission.
A fiber bundle is a group of optical fibers assembled together to transmit multiple optical signals simultaneously. Each individual fiber acts as an independent optical transmission channel, while the complete bundle creates a larger and more flexible optical interface.
A typical fiber bundle consists of:
Multiple single optical fibers
Precision alignment structure
Protective packaging
Input and output optical interfaces
In a conventional fiber bundle, the distance between fiber cores is mainly determined by the fiber diameter. Once the fiber type is selected, the achievable core pitch is limited.
MEISU overcomes this limitation through advanced fiber reduction and alignment technology, allowing customized core spacing and optimized optical layouts.

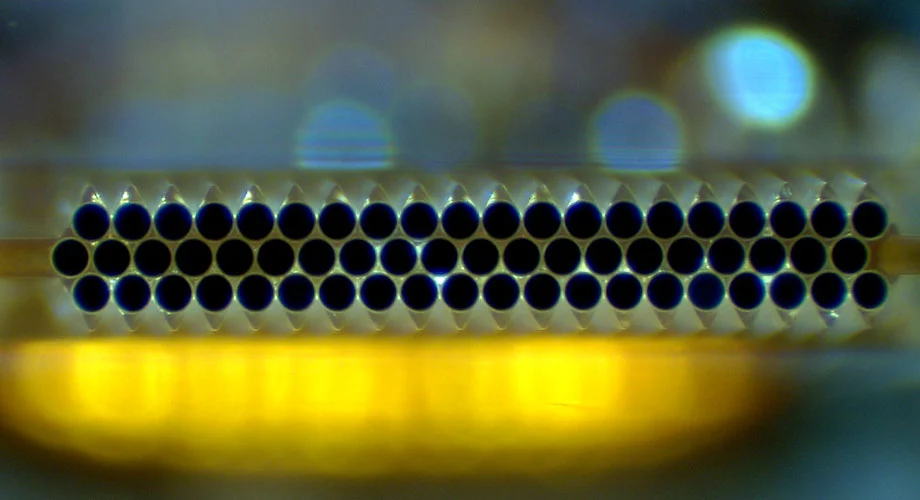

A 2D fiber optic bundle uses a flat-bottom groove and lid structure to arrange multiple fibers tightly together in a rectangular or circular configuration.
Unlike traditional linear arrangements, 2D fiber bundles enable multi-dimensional fiber positioning, making them suitable for applications requiring high channel density and compact optical packaging.
The manufacturing process involves:
Selecting suitable fiber types based on application requirements
Arranging fibers into customized patterns
Controlling fiber core pitch with high precision
Fixing fibers through advanced bonding and packaging processes
Performing optical performance testing
MEISU supports customized configurations using:
Single mode fiber
Multimode fiber
Polarization maintaining fiber
This flexibility allows engineers to design optical systems with optimized coupling efficiency and integration density.
Standard optical components may not always meet the requirements of advanced photonic systems. A customized fiber optic cable bundle provides several advantages:
Customers can define the required fiber pattern according to system architecture, including:
Linear arrangement
Rectangular array
Circular arrangement
Custom geometry designs
Core pitch directly affects optical coupling performance. MEISU provides customized pitch solutions according to application requirements.
With precision manufacturing technology, MEISU achieves:
Customer-defined core spacing
Pitch accuracy below 5 μm
Stable multi-fiber alignment
A high-density fiber optic bundle reduces system size while maintaining multiple optical channels, making it ideal for miniaturized photonic devices.
2D fiber bundle technology is widely applied in advanced optical fields where multiple channels and precise alignment are required.
Silicon photonics requires efficient coupling between conventional optical fibers and photonic integrated circuits.
A customized fiber optic bundle provides:
High-density optical coupling
Accurate fiber positioning
Compact packaging solutions
Fiber bundles enable flexible image transmission in:
Medical imaging
Industrial inspection
Microscopy systems
High-density fiber arrangements support:
Optical modules
Multi-channel transmission systems
Advanced communication architectures
Fiber bundles are used in:
Laser delivery
Optical sensing
Measurement equipment
MEISU provides complete customization capabilities from fiber selection to final assembly.
Customization options include:
Available fiber configurations include:
Single mode fiber
Multimode fiber
Polarization maintaining fiber
Customers can specify:
Number of fibers
Fiber pattern
Core pitch
Output configuration
MEISU works with customers to optimize:
Optical coupling efficiency
Mechanical integration
System reliability
This makes MEISU’s fiber bundle solutions suitable for demanding photonic applications.
A fiber optic bundle is used to transmit multiple optical signals through a compact arrangement of fibers. It is commonly used in communication, imaging, sensing, laser systems, and photonic integration.
A fiber bundle groups multiple fibers together for flexible optical transmission, while a fiber array provides precisely positioned fibers with controlled spacing for high-accuracy optical coupling.
Yes. Fiber bundles can be customized according to fiber type, channel number, arrangement pattern, core pitch, and application requirements.
A tapered fiber bundle gradually changes the fiber arrangement size between two ends, allowing efficient coupling between optical systems with different dimensions.
High-precision fiber bundle manufacturing can achieve micron-level positioning accuracy. MEISU supports customized solutions with pitch accuracy below 5 μm.
As optical systems continue moving toward higher integration density and more complex architectures, customized fiber optic cable bundles are becoming increasingly important.
From a single fiber to advanced 2D fiber arrays, MEISU provides precision-engineered solutions including:
linear fiber bundle
fiber optic bundle
single mode fiber bundle
multimode fiber bundle
tapered fiber bundle
With advanced alignment technology, flexible design capabilities, and customized manufacturing experience, MEISU helps customers build reliable optical systems for next-generation photonics applications.
